Display(Front-End Process)
Film Laser Cutting
KORONA™ FLC

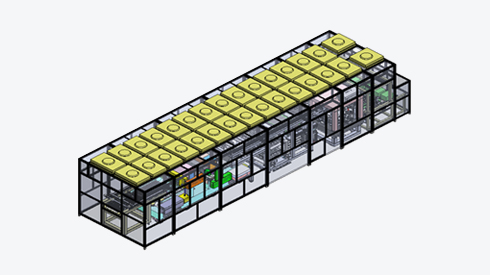

It is a laser Cutting system designed for various Films used in the Flexible Display. High precision laser, optics technology, and automation technology are integrated to cut and inspect the products. It is a process facility essentially recruited in the Flexible Display manufacturing process.
Technology

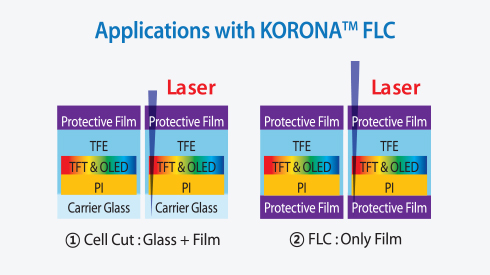

Laser is irradiated to the Flexible Film to perform precise Device Cutting.
Specification
| Laser Type | DPSSL / CO2 |
|---|---|
| Laser Wavelength | 355nm(UV), 532nm(Green), 1064nm(IR), 9.6um |
| Cutting Accuracy | ≤ ±50um |
| Model change | Working table(Auto change ≤ 1hour) |
| Stage Type | Single Plane or Stack Plane |
| Process Environment | ATM |
| Software | Easy Cluster™ |
| Safety Certification | CE, SEMI, S-Mark |
