Display(Back-End Process)

Module Dispenser

BPL and other dispensers

  • Provide the optimized equipment for quantification and coating thickness by resin type
  • User-friendly UI programming for convenient driving
  • Provides precision application by the dispensing head’s management of the discharge of chemical liquid
  • Monitoring discharge droplet mode(Weight, volume, speed, etc),vision checking and data classification algorithm
  • Chemical liquid capacity check and productivity increase due to reduced defect rates due to secure replacement cycles

Technology

  • Providing a comfortable application environment by removing contaminants in the Nozzle discharge area and chemical liquid before curing
  • Replacing Syringe(Cartridge) & JET Valve and removing bubbles when valve is activated
  • Chemical liquid capacity check and productivity increase due to reduced defect rates due to secure replacement cycles
  • Providing chemical liquid discharge algorithm

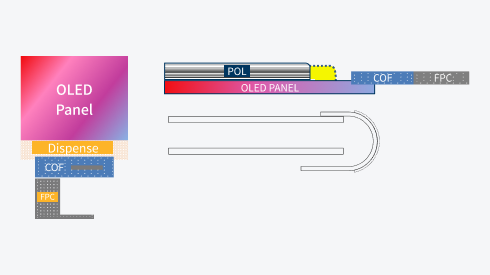

  • Chemical liquid coating process through vision align
  • Measuring Coating Coverage area and checking the level of coating through inspection process

Specification

Dispenser Thickness 80um~200um(TBD)
Dispenser Thickness Uniformity 80±30um(TBD)
Vision Align ±20um Component Technology :Plasma Treatment, UV Curing, Dispensing Inspection
Material Size 3”~ (TBD)
Application Phone, Foldable, Tablet, Note Book Process for Display
