Display(Back-End Process)

Module OCR Inkjet

OCR Inkjet Printer

  • Providing the best equipment according to the ink characteristics and application fields
  • User Friendly UI programming and convenient operation
  • Auto-alignment technology allows for easy head/pack replacement and precise printing
  • Droplet measurement and vision inspection system and data sorting algorithm

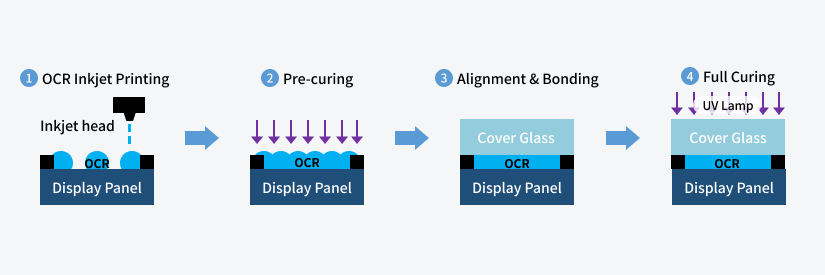

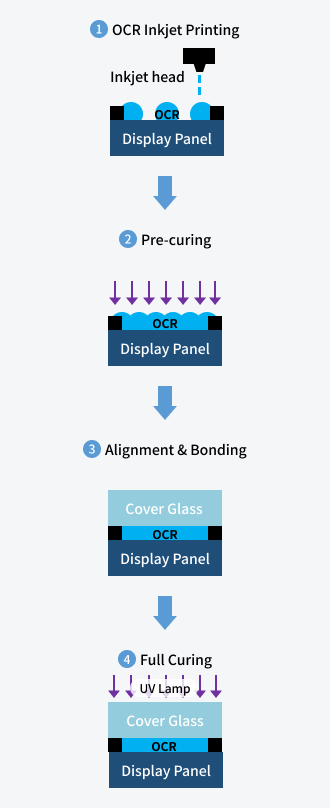

Technology

  • Inkjet printers can print on a variety of substrate materials in a desired thickness.
  • It is an eco-friendly manufacturing process that has no restrictions on the printing shape and has a very high solution consumption efficiency through
    DOD(Drop on Demand) inkjet printing.
  • OCR is thinner and clearer than OCA, and the material cost is 10 times lower.

Specification

Print Thickness ≤ 200㎛(±5%)
Print Position Accuracy ≤ ±50㎛
Component Technology Head & Droplet Inspection, Pattern Printing Algorithm, Meniscus Pressure Control,
Automated Optical Inspection, Plasma Treatment, UV Curing, Atmosphere or
N2 Conditioning
Application Filling, Bonding, Encapsulation Process for Display
